Customized, Popular Tube ice maker , Daily Capacity 8Ton Tube Ice Machine

Détails sur le produit:

Lieu d'origine:	Jiangsu, Chine
Nom de marque:	Yixing ICS
Certification:	ce

Conditions de paiement et expédition:

Quantité de commande min:	1 - Ensembles 1
Prix:	$25,000.00
Détails d'emballage:	Des caisses en bois dans le conteneur standard ou moins que la charge de conteneur chaque ensemble e
Capacité d'approvisionnement:	1 ensemble/ensembles par mois

Contact

Tous les produits

Machine de machine à glaçons de flocon (75)

Machine de machine à glaçons de bloc (63)

machine de fabricant de tube de glace (13)

machine à glace de boue (18)

Machine artificielle de chutes de neige (15)

Réfrigérateur évaporatif de condensateur (11)

Des unités de réfrigération plus fraîches (12)

Rangée en aluminium de réfrigération (5)

L'énergie solaire a conteneurisé la chambre froide (11)

Unités de réfrigération d'entreposage au froid (2)

Description de produit détaillée

Forme de glace:	Balle	Capacité d'entreposage dans la glace:	AUCUN
Industries applicables:	Les hôtels, vêtement fait des emplettes, matériau de construction fait des emplettes, usine d'atelie	Après service de garantie:	Support technique visuel, appui en ligne, maintenance sur le terrain de pièces de rechange, et servi
Emplacement de service local:	AUCUN	Emplacement de salle d'exposition:	AUCUN
Condition:	Nouveau	Tension:	220V/380V
Puissance:	4.5kw	Dimension (lwh):	13209501800 millimètre
Poids:	4500kg	Garantie:	1 an
Le service après-vente a fourni:	Pièces de rechange, installation libres de champ, commissionnant et s'exerçant, maintenance sur le t	Arguments de vente principaux:	Automatique
Rapport des essais de machines:	Fourni	Sortant-inspection visuelle:	Fourni
Type de commercialisation:	Produit nouveau 2020	Garantie des composants de noyau:	1 an
Composants de noyau:	Récipient à pression, moteur, incidence, vitesse, pompe, boîte de vitesse, moteur, PLC, autre	Nom de produit:	Machine à glace de tube de Yixing ICS
Type:	machine à glaçons automatique	Manière de refroidissement:	Refroidissement par l'eau \ refroidissement à l'air
Compresseur:	Bitzer	Matériel:	Acier inoxydable
Réfrigérant:	R404a/R22a	Système de contrôle:	Système de contrôle automatique
Matériel intérieur de vaporisateur:	Cuivre/acier au carbone/acier inoxydable	Application:	Boisson-refroidissement
Débouché de glace:	22mm, 28mm 35mm	Port:	CHANGHAÏ

Product Description

Tube ice machine

Tube ice machine is one kind of ice making machine. It is named for the regular cylindrical hollow Tube shape of the ice it produces. The name of the produced ice cube is Tube ice. The contact area is the smallest of the existing ice types in the market with the best melting resistance. It is suitable for drinks, decoration, food ice storage and so on, so it is mostly edible ice.
The tube ice produced by tube ice machine is a kind of ice block with irregular length and hollow tube. Its inner hole is 5mm~15mm, and the length is 25mm~42mm. There are various sizes to choose from. The outer diameter of the ice is as follows: 22, 29, 32, 35 mm, etc. It is suitable for daily consumption, vegetable preservation and fishery products preservation.

Product Name	Tube Ice Machine
Cooling Type	Water CoolingAir Cooling
Refrigerant	R22/R404A
Package	Standard export packing
Input Power	380V/3P/50HZ
Ambient temp	30℃
Water inlet temp	25℃
Condensing temp	42℃
Compressor running power	4.25kw
Installation power	6kw
Dimension	13209501800mm
Net weight	650kg

Features Of Tube Ice Machine

Pure Ice	Using Pre-PurifyTM water purification technology to filter the incoming water, the ice cubes are crystal clear.
Perfect Design	All the equipment adopts CAD-3D simulation assembly, which makes the arrangement of equipment parts and accessories and the direction of pipes more reasonable, compact structure and not crowded, and more humanized operation and maintenance.
Safety and Hygiene	Evaporator materials are made of stainless steel 304 and other materials, reaching the international health standards.
Efficient Performance	The evaporator adopts special processing technology, which makes the evaporator have better thermal conductivity.
Energy Saving And Water Saving	Each compressor condensing unit is equipped with heat exchange of return pipe and liquid supply pipe, control of evaporation temperature and condensation temperature, super-heat of return gas and oil return, so as to ensure stable operation of compressor unit under safe working conditions.
High Quality Accessories	More than 80% of the refrigeration equipment accessories produced by Ice Source use well known brands at home and abroad. For example, Bitzer is used for the compressor. Hansen, Danfoss, Emerson and other world famous brands are used as refrigeration accessories.
Customized	The refrigeration equipment produced by Ice Source can operate normally under the working conditions of -20~+50℃ and water inlet temperature of +0.5~+45℃. The company can not only provide all kinds of standard refrigeration equipment for you but also customized the refrigeration system under special working conditions according to the actual needs.
Stable and Reliable	Perfect design, reduce the equipment internal unnecessary transmission parts, so that the equipment more simple and reliable. The unit is generally equipped with low water level, water flow, full ice, high pressure compressor, low pressure of compressor, oil pressure of compressor, etc., so that the equipment can operate stably, reliably, and safely, and can operate continuously for more than 3000 hours without fault.
Standardization	Most of the products have been standardized, so that the production quality and processing technology are more mature and the quality is more guaranteed.
Fully Automatic	PLC computer module automatically controls ice making process at a glance.

Detailed Images

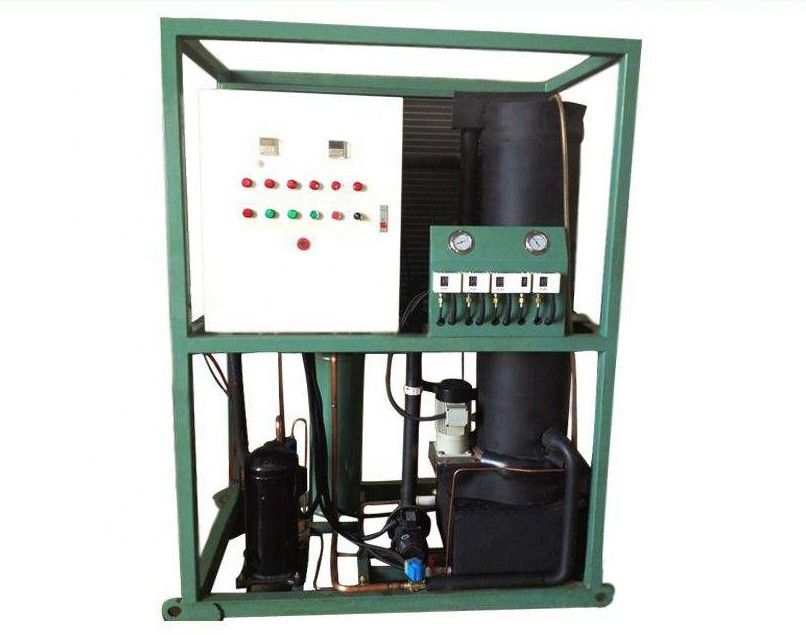

Structure

The structure of tube ice machine mainly includes evaporator, condenser, water storage tank, compressor and liquid storage tank.
Among them the evaporator structure is the most complex, the accuracy requirement is the highest and the manufacturing difficulty
is the biggest.

Classification

Tube ice machine can be divided into small tube ice machine and large tube ice machine according to the daily output ( According to the international standard of working conditions: dry bulb temperature of 33°C, inlet water temperature of 20°C). The daily ice production of small tube ice machines ranges from 1 ton to 8 tons, and most of them are single structure. The daily ice production of large tube ice machine is from 10 tons to 60 tons, most of which are compound structure and need to be equipped with cooling tower.

Ice making process

Ice making ---Ice collecting/delivering---
Ice Packing and weighing---
Ice storage

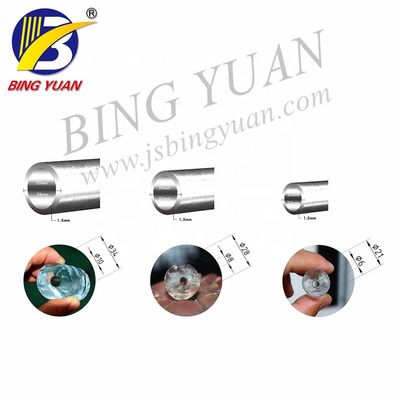

Ice shape choice

Choice 1-S:φ22*H35mm, inner hole 5mm, 12g.

Choice 2-M:φ28*H40mm, inner hole 8mm, 20g.

Choice 3-L:φ35*H50mm, inner hole 12mm, 42g.

Product Usages

Daily consumption

Vegetable preservation

Fishery products preservation

Drinks Cooling

Medical Industry

Chemical Industry

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas
